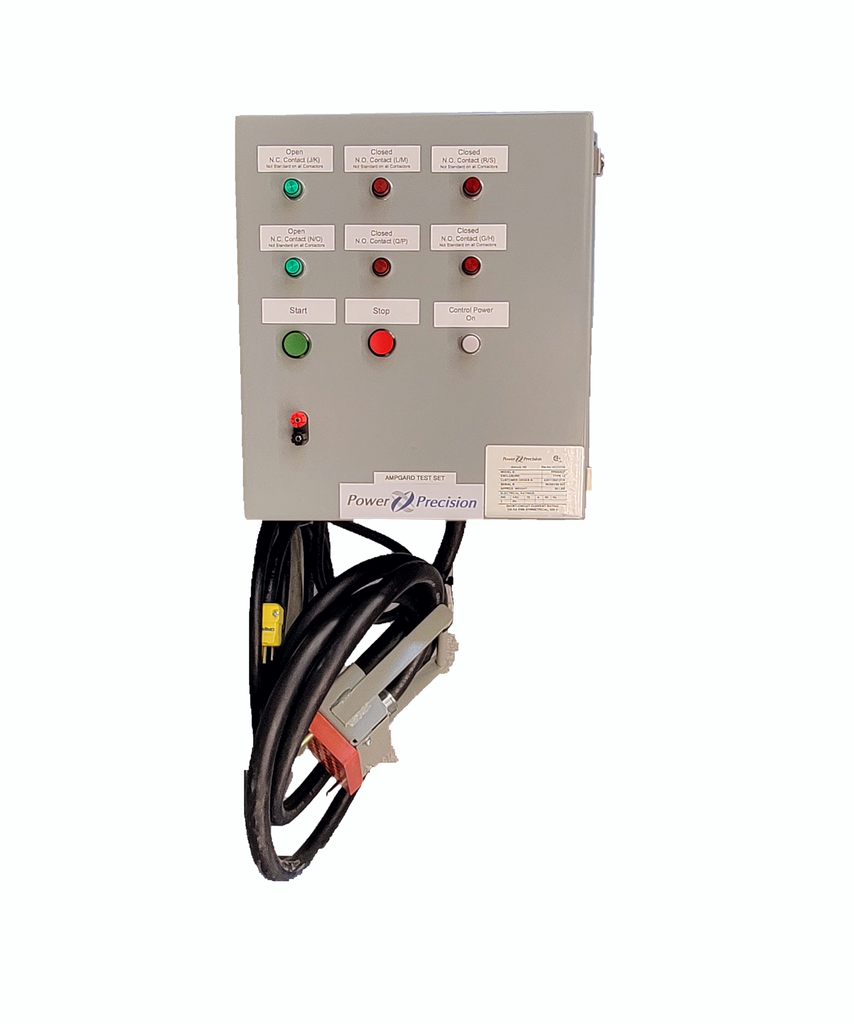

Portable Test Panel For 5kV Ampgard II Motor Contactors
This portable test unit can be easily carried to, or mounted in, electrical rooms for testing Ampgard II motor contactors.
Connect the female Ampgard II secondary plug to the male secondary plug on the Ampgard II to be tested.
Connect the 120V male plug to a local 120VAC wall receptacle.
Use the open / close buttons on the test unit to electrically open and close the contactor.
LED lights confirm the open and close status as well as status of each auxiliary contact on the Ampgard II contactor.
Two test plugs on the test unit are available for a trigger signal to a timing test set.
