125HP 600V Vacuum Motor Starter Panels on Frame for Mines
Vacuum Motor Starters and Solid State Soft Starter on protective steel frames for underground mining applications.
Top of the line name brands and safety features as described below.

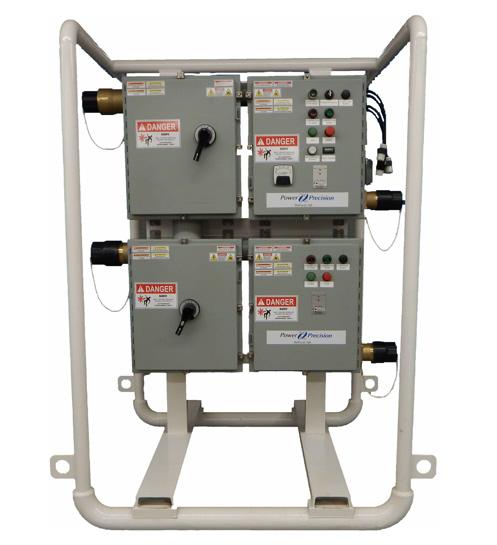

Dual 75HP and 125HP Full Voltage, Vacuum Motor Starters for underground mine motor applications
- Heavy duty steel protective skid frame with corrosion resistant paint
- 4 NEMA 4 Powder Coated Steel Enclosures, 2 Power, 2 control
- Additional Arc Flash safety features including:
- External operating handles for 600 V breakers
- 600 V incoming breakers are in a separate enclosure so that 600 V is isolated before entering control enclosures for safe troubleshooting of 24 V controls without the presence of 600 V
- 3 phase LED voltage indicating lights at incoming supply receptacle and outgoing receptacle for indication of voltage at 600 V connections
- 24 VDC control voltage
- External controls and resets
- 600V, 225A incoming male mine receptacle
- 2 x 400 Amp K frame breakers with exterior operator handles
- 125 HP and 75 HP outgoing female mine receptacles
- Vacuum Contactors and Electronic Overloads for 75 and 125 HP motor starters
- 2 Startco ground fault and pilot wire protection relays
- Heavy duty corrosion resistant NEMA 4X pilot lights and pushbuttons
125 HP Electronic Soft Starter for underground use, including:
- Heavy duty steel protective skid frame with corrosion resistant paint
- NEMA 4 Powder Coated Steel Enclosures, 1 Power, 1 Control
- Additional Arc Flash safety features including:
- External operating handle for 600 V breaker
- 600 V incoming breaker is in a separate enclosure so that 600 V is isolated before entering the control enclosure for safe troubleshooting of 24 V controls without the presence of 600 V
- 3 phase LED voltage indicating lights at incoming supply receptacle and outgoing receptacle for indication of voltage at connections
- 24 VDC control voltage
- External controls, resets, programming keypad and display for status, metering and settings.
- 600V, 225A incoming male mine receptacle
- 600V, 125 HP outgoing female mine receptacle
- Allen Bradley SMC electronic soft start with motor protection features
- 600V, 125 HP Vacuum Contactor for total isolation of 600 V motor circuit
- Electronic motor overload protection
- 400A K frame breaker with exterior operating handle
- StartCo Ground fault and pilot wire protection relays
- Heavy duty corrosion resistant NEMA 4X pilot lights and pushbuttons
