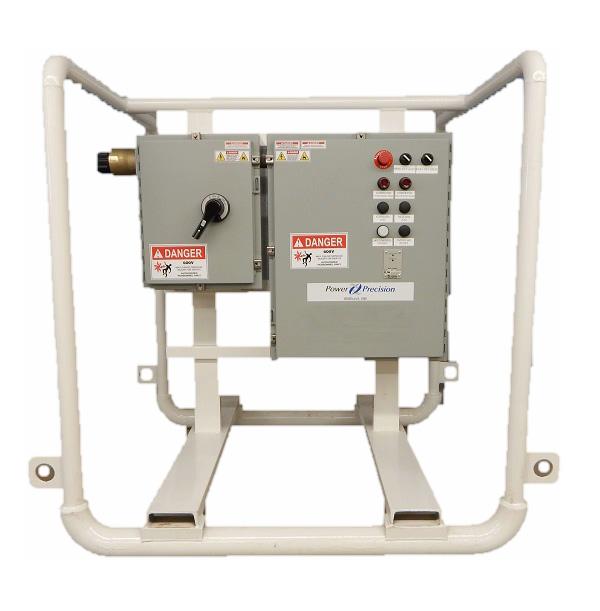

100HP 600V Vacuum Reversing Motor Starter on Mining Frame
Reversing vacuum motor starters mounted on protective steel frames for underground mining applications.
100 HP Vacuum Reversing Motor Starter with multiple features fit for underground mining applications, including:
- Heavy duty steel skid frame for protection in a mining environment
- 2 NEMA 4 Powder Coated Steel Enclosures, 1 Power, 1 Control
- Additional Arc Flash safety features including:
- External operating handle for 600 V breaker
- 600 V incoming breaker is in a separate enclosure so that 600 V is isolated before entering the control enclosure for safe troubleshooting of 24 V controls without the presence of 600 V
- 3 phase LED voltage indicating lights at incoming supply receptacle and outgoing receptacle for indication of voltage at 600 V connections
- 24 VDC control voltage
- External controls and resets
- 600V male incoming mine receptacle
- 600V breaker with exterior operator handle
- 2 Vacuum Contactors, 600V, 125 HP rated with FWD, REV control
- Electronic Overload
- StartCo ground fault and pilot wire protection relay
- Heavy duty corrosion resistant NEMA 4X pilot lights and pushbuttons
- Includes alarm horn and E-stop interlock plugs typical for a mining conveyor application
