15kV Vacuum Ground Fault Interrupter

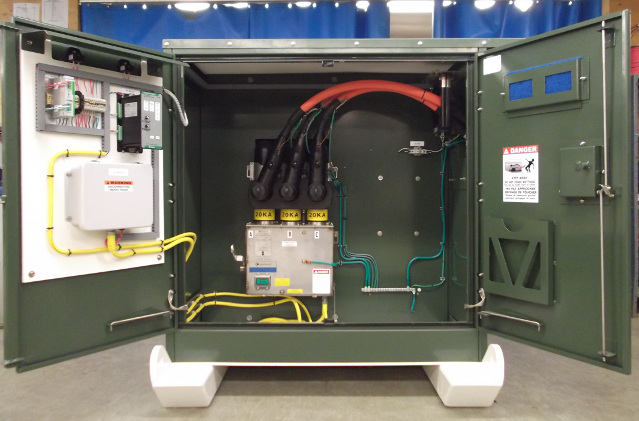

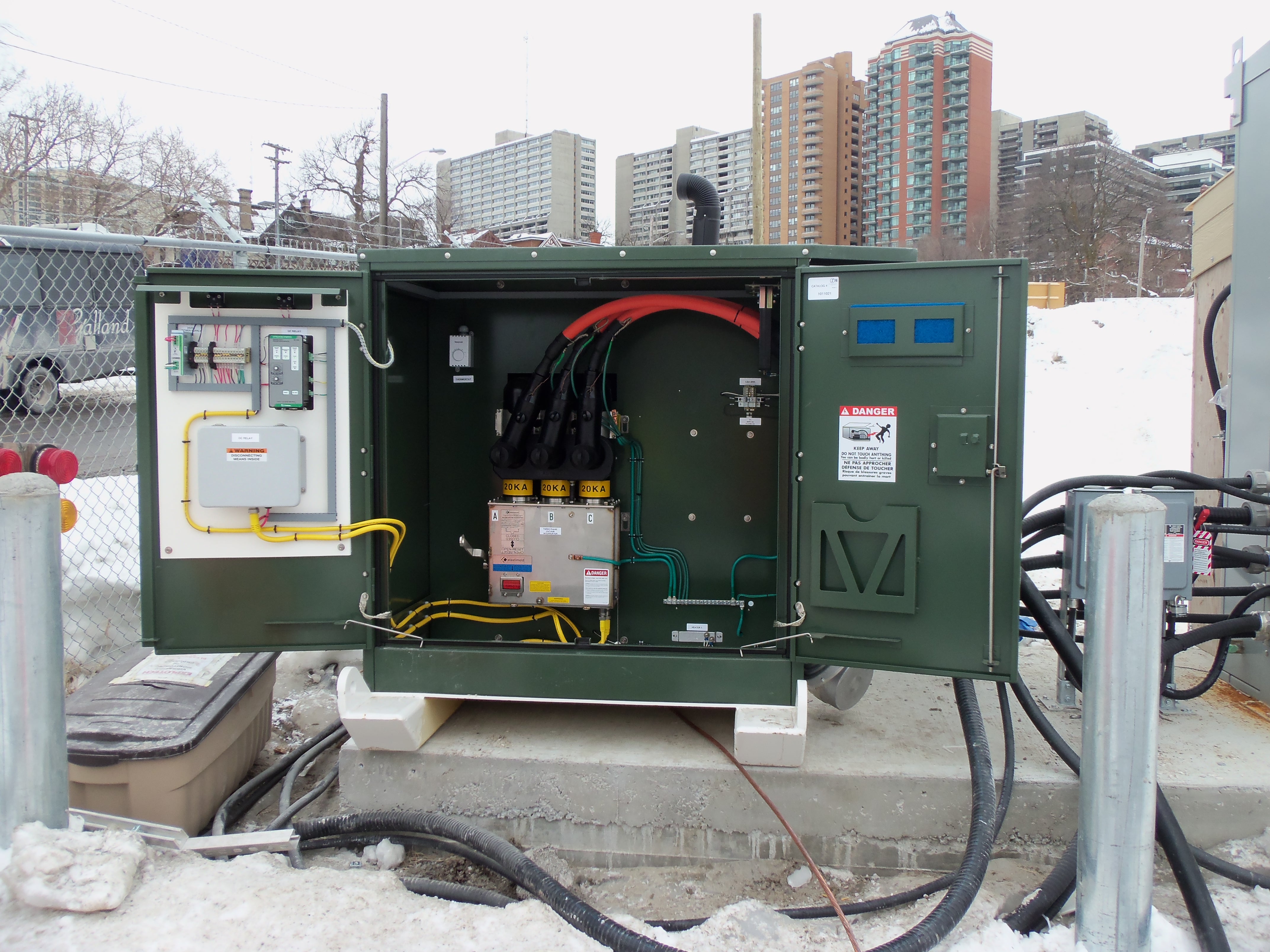

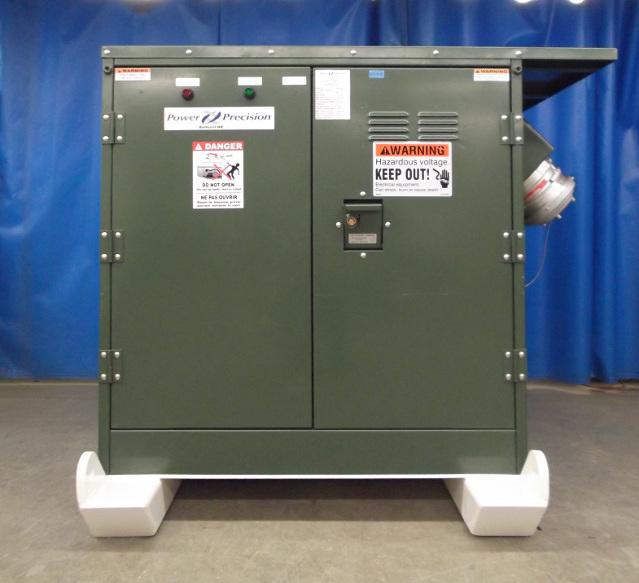

Power Precision designed and built 15 KV vacuum interrupters to supply underground substations. The unit pictured was one of three designed to aid the construction of the tunnels for the Ottawa Light Rail Transit.
Standards
- Built and tested to CSA standards
Features and Electrical Ratings
- 15kV, 500A, 3 phase Vacuum Circuit Interrupter
- 95kV BIL, 20 KA and other ratings available
- Ground Fault Protection and Pilot Wire Monitoring for underground mining applications
- Available with self-powered control transformer
- Adjustable phase overcurrent protection with programmable time current curves
- Pushbutton or remote closing options available
- 15kV female mining connector

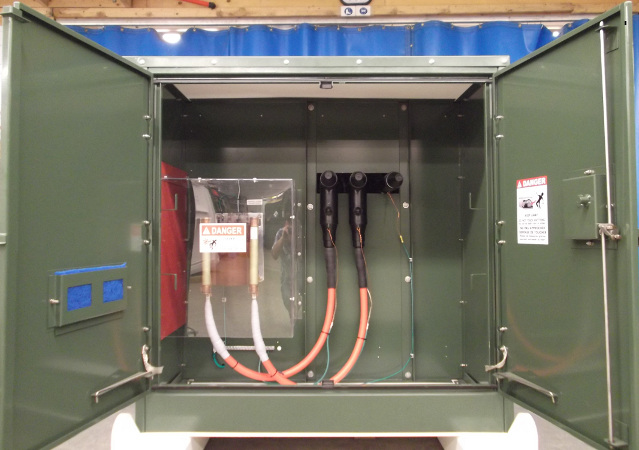

- Dead front breaker compartment with insulated conductors
Enclosure
- Rugged heavy steel freestanding enclosure
- Zinc based primer and paint for corrosion protection
- Hinged and gasketed doors with stainless steel fastening hardware
- Steel skid style base for easy mobility
